Contact Nippon Fruehauf Company, Ltd., for manufacturing and sales of transport equipment and van bodies｜Lift Axle Trailer Series

• The highway toll classification will change.
  By automatically switching to single-axle running depending on the amount of cargo, the highway toll classification will change from four-axle vehicle [Over-size vehicle] to three-axle vehicle [Large-size vehicle].
• Lower running costs
  Fuel consumption and wear of tires and brakes can be reduced.
• Fully automatic lift mechanism

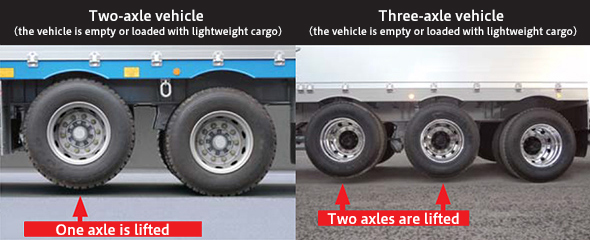

  The cargo bed is automatically lifted up when the vehicle is empty or loaded with lightweight cargo. It is automatically lifted down and runs in the normal state when the load increases.
• Flexible response to cargo handling environment
  The cargo bed can be lifted up and down* by the vehicle height adjustment function (optional), so cargo handling work can be performed efficiently according to the platform. (*Lift-up: Approx. 65 mm, Lift-down: Approx. 90 mm) The vehicle height automatically returns to the standard height in running.
• Environmentally friendly vehicles
  By lifting up one or two axles, the influence to the road surface can be reduced.

Trailer	Wing	Platform	Container Chassis	Van
Two-axle vehicle	○	○	○	○
Three-axle vehicle	○	○	○	○

*For the three-axle vehicle, the rear-middle axle grounding type is also available.

Vehicle Model Classification	Vehicle Type
Large-size vehicles	Freight automobiles (vehicles with three axles or less with a gross vehicle weight of 8 tons or more or maximum loading capacity of 5 tons or more, and gross vehicle weight 25 tons or less and 4 axles. (However, vehicles that have the furthest wheelbase of under 5.5 meters, or the car length is under 9 meters must be 20 tons or less; vehicles with a furthest wheelbase of 5.5 meters or more but under 7 meters and car length of 9 meters or more and a vehicle with a furthest wheelbase of 7 meters and more and a car length of 9 meters or more but less than 11 meters must be under 22 t)) Trailers (a standard-size car towing a vehicle with two or more axles, a mid-size car towing a single axle vehicle or a large size car (two axles) towing a single axle vehicle)
Over-size vehicles	Freight automobiles (standard vehicles not classified as large-size vehicles with four or more axles) Trailers (a mid-size vehicle towing a vehicle of two or more axles, a large-size car towing a vehicle and the total number of axles is four or more and an over-size vehicle towing a vehicle) Large-size special motor vehicles
